Item specifics
  • Products Status: Stock
  • Package: No
  • Model Number: 77.5cm*1.7cm
  • Type: LED Backlight Lamps
  • Length: 775mm(L)*17mm(W)
  • Connector: 2pin
Product Description

39\'\' 40\'\' 775mm LED Backlight Lamps kit w/ Optical Lens Fliter for TV Monitor Panel 12pcs LED strips + driver board



LED Strip Specification:

  • 100% Brand New Excellent quality;
  • Length: 385mm*17mm (L x W), 2pcs/set total length about 775mm;
  • Voltage: 3V each lamps
  • LED QTY: 5pcs with lens/pcs, 2pcs/set total 10pcs
  • Connector: 2pin
  • Also can be used as a update kit , update LCD to LED.



Driver board Specification:

  • Used for: 26inch-55inch LED TV
  • Input Vol: 19-45V
  • Output Vol: 60-165V
  • Output current: 10MA-1000MA (can set)
  • size: 12x6cm

Driver board Description:

The LED Strip Vol must be between 60V-165V. Can not less than 60V, if less than 60V,you can choose our other item. Can not higher than 165V, the product design conditions  shall not exceed the maximum working voltage of 165V. If the voltage exceeds ,the screen will appear dark or flashing lamp and so on. This product is only constant, not constant voltage, the voltage will automatically adjust to the appropriate voltage according to the led strip need, so you do not worry about in no-load voltage condition measuring how much voltage is.
HTB1th4uLpXXXXbdXpXXq6xXFXXXO

You may have the problems after correct lighting:
The brightness is not enough, the screen is significantly darker than the original’s .
now you need to do the two steps:

First step, attempt to use the remote control after connected to the transfer barefoot to try brightness, if not resolved, test the actual pin voltage (Note: it will be the greatest brightness in 0V, the brightness will be the darkest in greatest Voltage) .

if it is an analog voltage mode voltage range is between 0V-5V or 0V-3.3V, if the voltage has been in hight condition all the time andcan not be reduced, now you need to adjust it. the voltage is 3.3V if it is PWM signal, it still can be up to request if adjust to the greatest brightness at this time ,you need to do second program

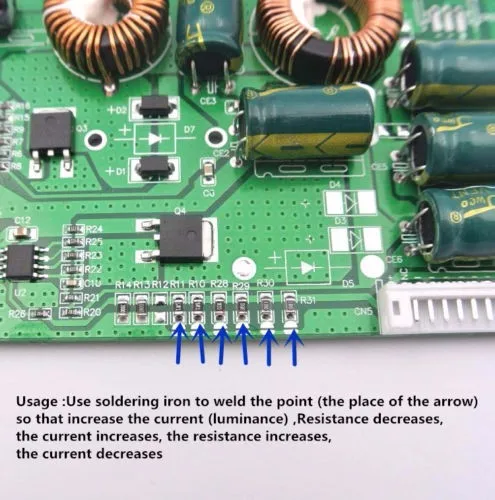

Second step, adjusting the resistance, increases the current to meet the requirements.



Package include:

  • 12pcs x 385mm srtips (6set x 775mm strips)
  • 1pc x driver board;
  • 2pcs x cable;

775x17mm kit (13)775x17mm kit (12)775x17mm kit (10)775x17mm kit (8)775x17mm kit (7)775x17mm kit (3)775x17mm kit (2)775x17mm (2)775x17mm (7)775x17mm (9)775x17mm (10)



fuwufuwu

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 50cm x 20cm x 5cm (19.69in x 7.87in x 1.97in)
