Product Description

Description

The Wav Player kit is designed specially for voice broadcast projects, such as bus stop announcement system, clock broadcast system, door welcoming system, ATM machines tone systems, and wave file playback voice project.

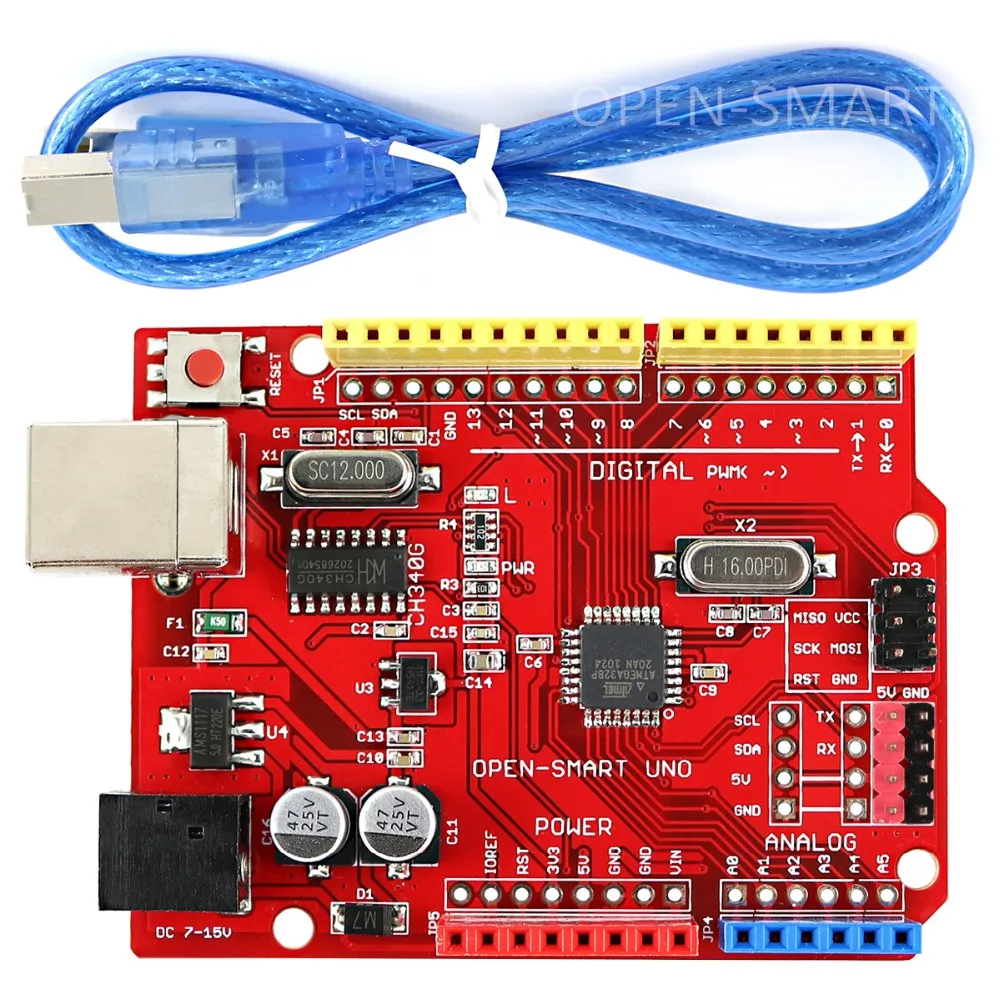

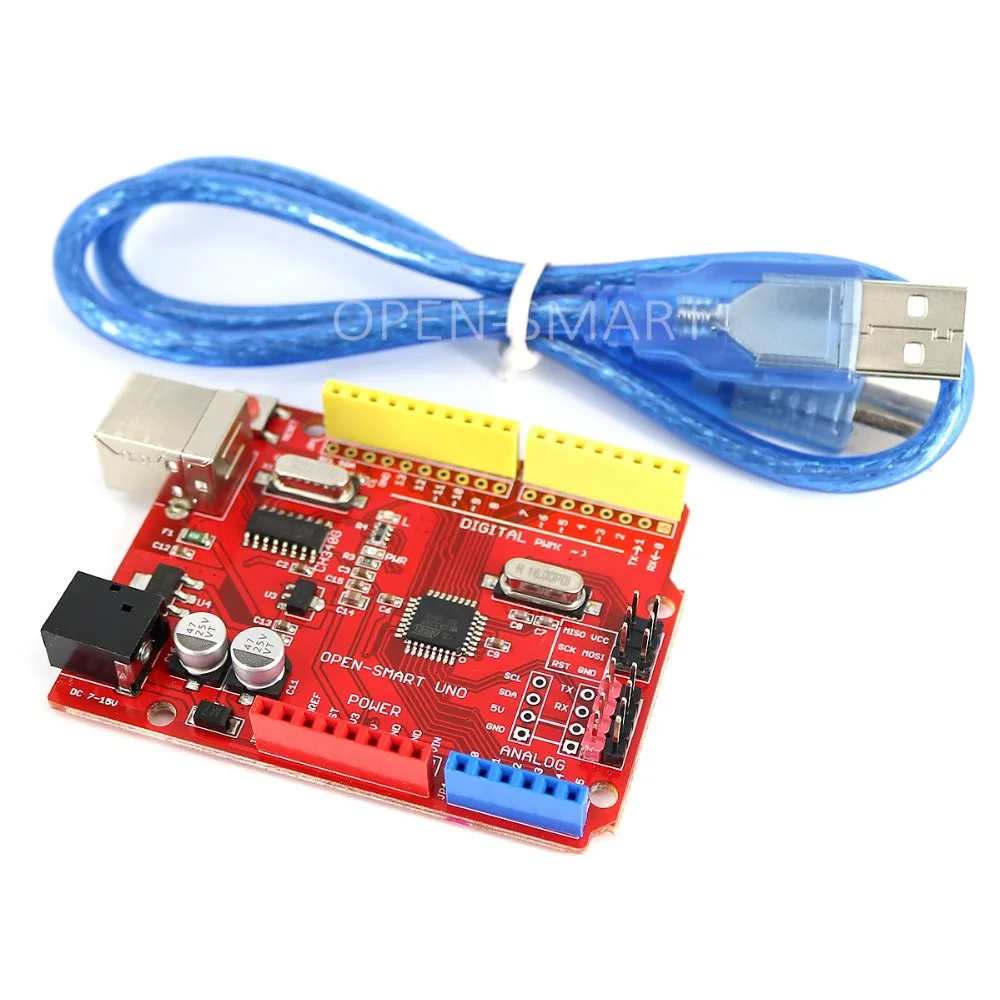

The kit contains a high quality OPEN-SMART UNO board which is improved ar duino compatible development board based on ATMEGA328P. Red board and the colorful female pin headers  make your project more impressive. It is very popular Ar duino project production.

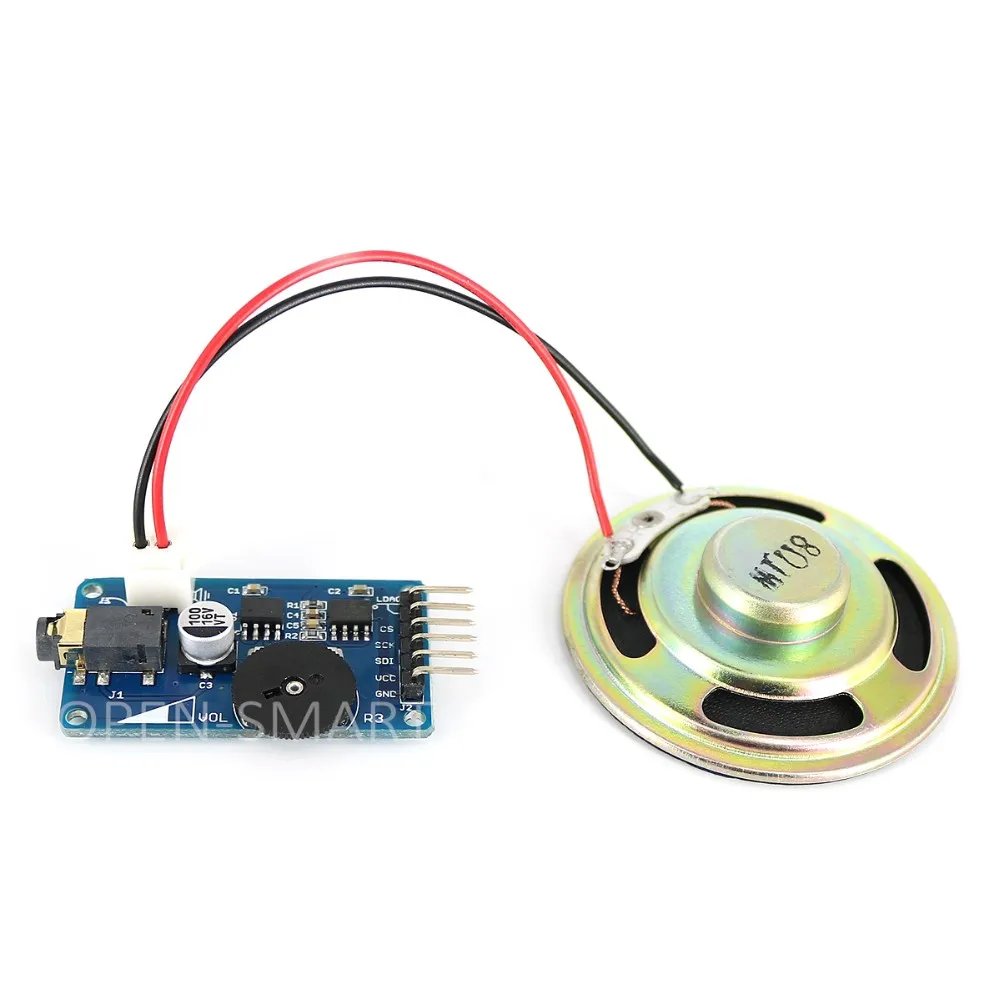

The kit contains a wav player module that is based on 12-bit DA converter chip MCP4921. It can play up to 22KHz, 12bit uncompressed wav audio files of any length with the MCU mother board and SD card. It can directly connect to headphone and the power amplifier speaker. Onboard XH2.54-2P nest, it can connect to a small 8 ohm / 1W speaker.

Features:
- Designed for Ar duino DIY lovers, Ar duino project designers
- 100% compatible with Ar duino UNO R3 program, expansion shields, IDE.
- Touch sensors can be used to play, pause function
- Micro SD card module can be used to read and write files in Micro SD card, SPI Interface
- Can play wav music, audio files
- Working voltage: DC 4.75 ~ 5.25V
- Playback formats: wav
- Micro SD Card Capacity: 256MB
- Speaker: 8 ohm 1 watt, size is 50 * 13mm
- Ar duino Library: Adafruit WaveHC


Photos

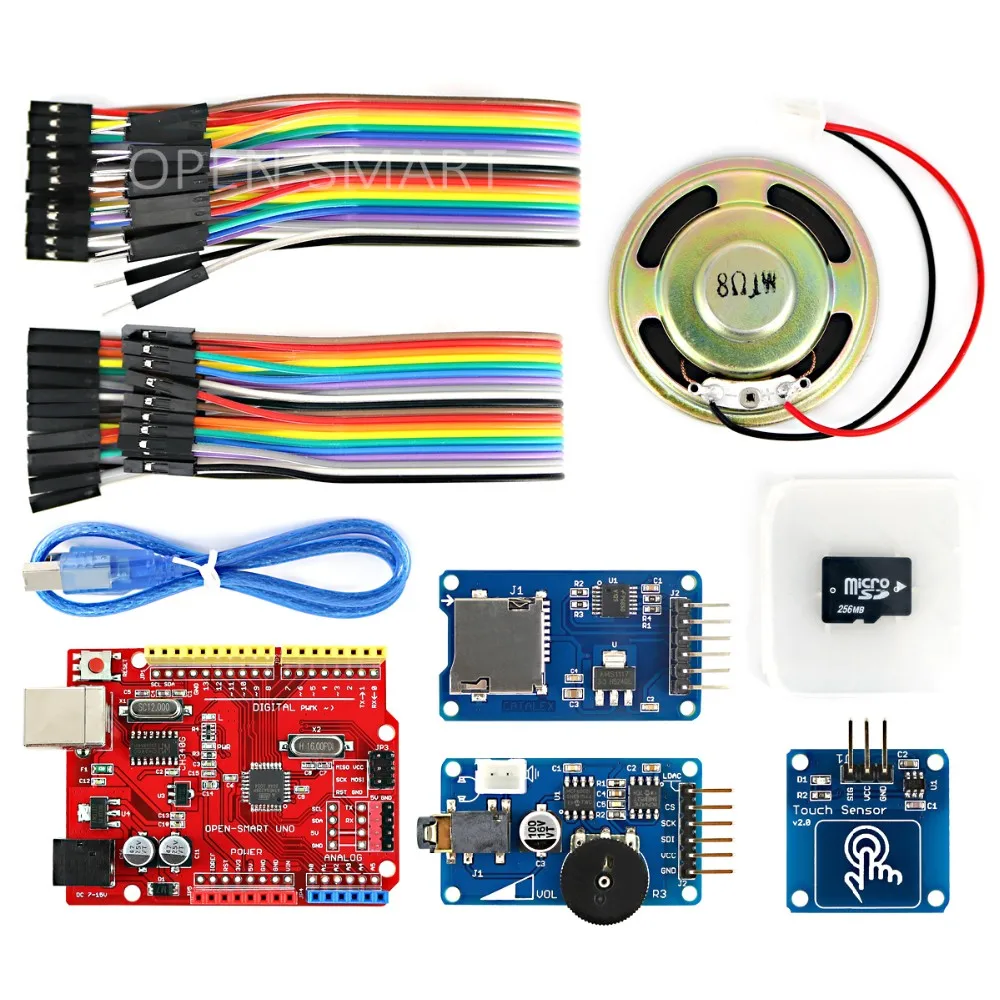

Wav Player Kit 1 Wav Player Kit 2 Wav Player Kit 3 Wav Player Kit 4 Wav Player Kit 5 Wav Player Kit 6
Part List    ( Schematics and program can be sent via e-mail,Please contact us)

1 x OPEN-SMART UNO board
1 x USB cable (50cm)
1 x Wav player module
1 x Micro SD card adapter module
1 * Touch sensor module
1 * Micro SD card
1 * Speaker
1 * 20P Male-to-Male breadboard wire (20cm)
1 * 20P Male-to-Female breadboard wire (20cm)

https://drive.google.com/folderview?id=0B6uNNXJ2z4CxUm4xSWtCZDBuTEE&usp=sharing
