Item specifics
  • Package: Yes
  • Type: Industrial Computer Accessories
  • Brand Name: BaiTang
  • Products Status: Stock
  • Model Number: YZC-1B-100
  • model : YZC-1B
Product Description



Note: The color of the item may vary slightly due to photography and your own computer
  Fit for price-computing instrument
  • Wiring: Red line voltage positive, Black line voltage negative
  •  White Line signal positive, Green line signal negative
  • Nonlinear: 0.017 percent F.S and 0.02 percent F.S
  • Creep (30 minutes): 0.03 percent F.S
  • Output temperature: 0.003 percent F.S or degree celsius
  •  Zero temperature: 0.02 percent F.S or degree celsius
  • Zero balance: positive and negative 0.1000 mV or V
  •  Input impedance: 402 positive and negative 6 percent ohm
  •  Output impedance: 350 positive and negative 3 percent ohm
  •  Insulation Resistance: 5000 Megohms
  •  Operating temperature range: minus 35 to 80 degree celsius
  •  Protection class: IP65
  • Material: Aluminum Alloy
  • Size: 130 x 30 x 22mm or 5.11 x 1.18 x 0.86inch
  •  Weight: 168g

 Parallel beam installation methods:
  We installed between the load cell. first, prepare two plates, the material and size
according to our own needs. According to the sensor\'s hole to lay eyes. Then prepare
four screws, nuts and below the foot pad. Put the sensor between two plates, screws
with hexagonal plate with parallel beam load cell fixed firmly. Fixed to the upper
plate section of the sensor, and the other end fixed to the lower plate of the sensor.
To add a fixed time between the upper and lower plate and the sensor gasket pre-prepared,
  so as to force the sensor vacant. Finally the feet and other parts were fixed to complete
the installation of the sensor.

Package included:

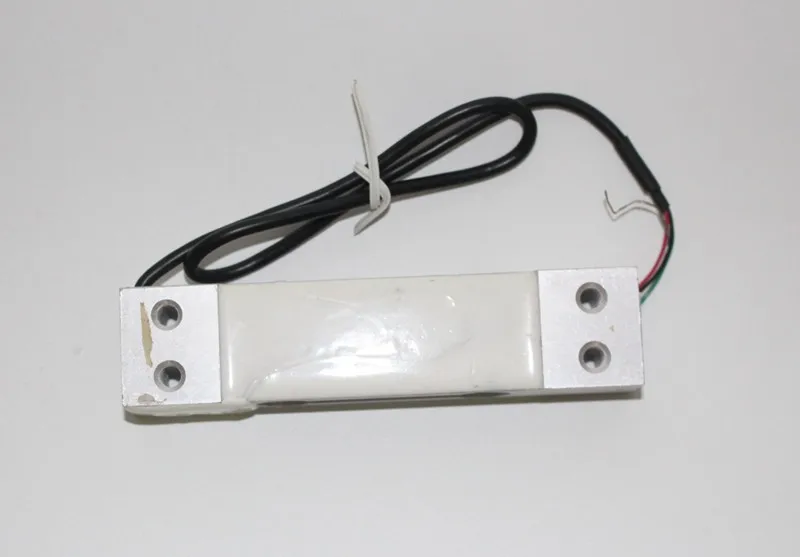

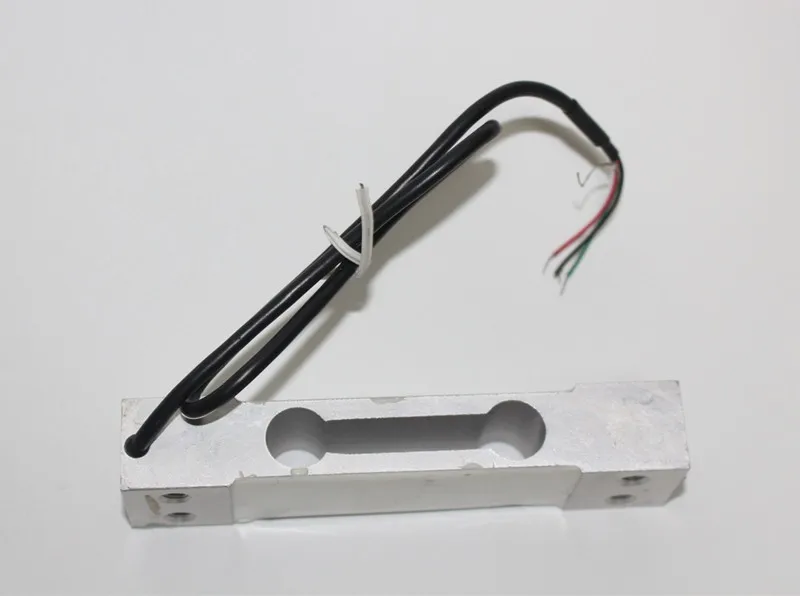

  • 1 x 100Kg Electronic Scale Weighing Sensor
YZC-1B-3 YZC-1B-4
