Item specifics
  • Products Status: Stock
  • Type: Industrial Computer Accessories
  • Brand Name: IOCREST
  • Package: Yes
  • Model Number: ADPCC09929
  • Enclosure Deminsion: 192*147*42mm
  • Feature : mini PCIe to PCI
  • Power Input: 12V DC input
  • is_customized: Yes
Product Description


The Mini PCIe to Dual PCI Bus Adapter was designed to convert the Mini PCIe bus into two 32-bit PCI buses. It allows you to connect up to 2 32-bit PCI expansion boards to the motherboard Mini PCIe connector (supports full-size and half-size).


Ø    It allows you to plug-in up to two (2) full-sized PCI cards
Ø    Compliant with PCI Express Specification 1.0a
Ø    PCI Specification 2.2 Specification compliant
Ø    Compatible with full-size and half-size Mini PCIe connector
Ø    Provides easy connection to desktop computers
Ø    Expansion slot: two (2) full-sized PCI slots
Ø    PCI Bus: 32 bit 33MHz
Ø    5V&3.3V PCI slots
Ø    Supports 170mm length of PCI card

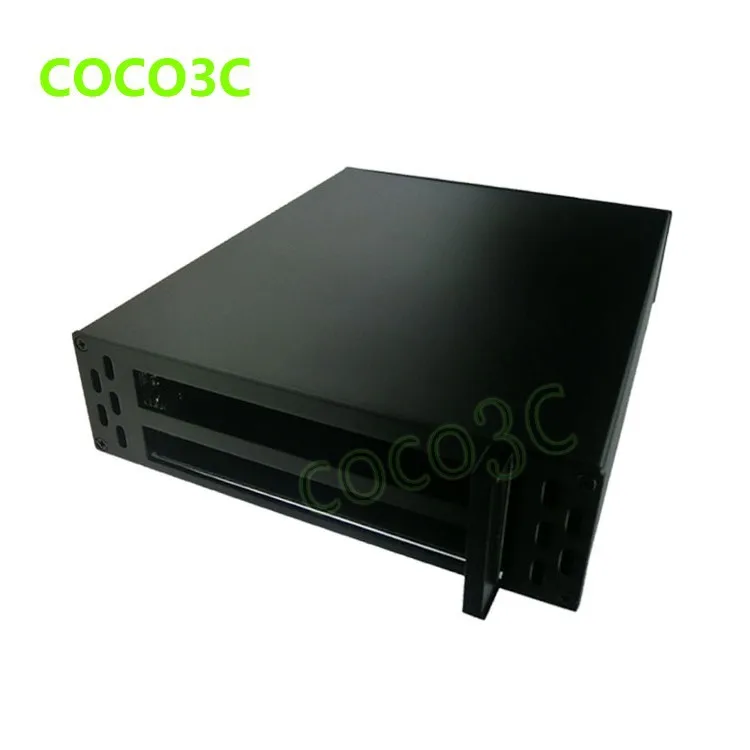

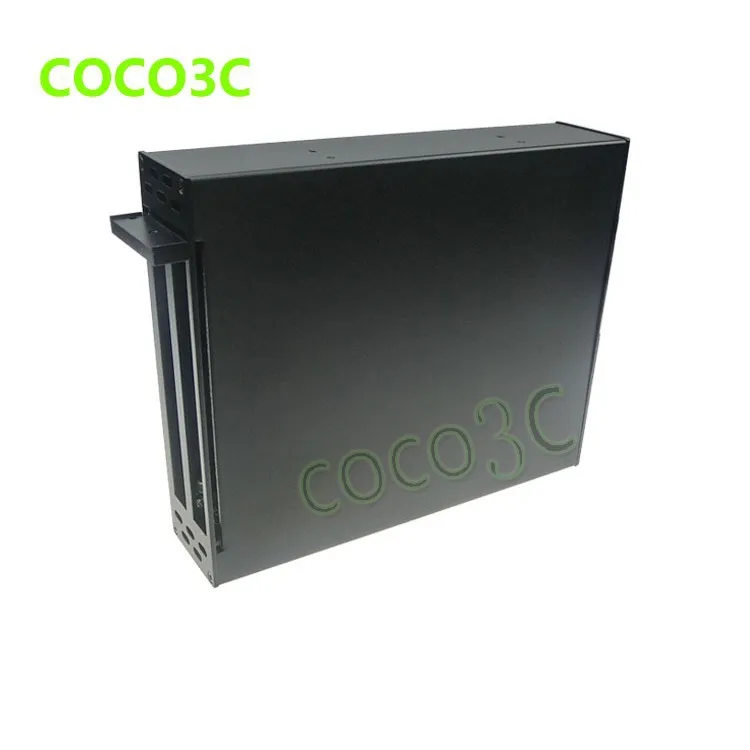

Ø    Aluminium alloy enclosure
Ø    Includes 1-meter expansion cable
Ø    No drivers required

The power (12V, 5V, 3.3V, -12V) for each PCI expansion board is supplied via a 12V/2A power adapter attached.


OS Support

 Windows 8(32bit/64bit)/ Windows 7 (32bit/64bit) /Windows Vista

(32bit/64bit) /Windows XP (32bit/64bit) /Windows Server 2003
 (32bit) /Windows Server 2008 (32bit/64bit) /Windows Server 2000
 /Mac OS 10.4+ /Red Hat Linux 2.6x+ /Solaris

mini PCIe To 2 Slot PCI Expansion Card Enclosure(Kit)      x 1
General English Manual        x 1

(NOTE:PCI card in the pictures is Not including in the price ,only for displaying.)

MINI PCIE TO PCI EXPRESS 16X SLOT ADD ON CARD FOR ITX BOARDMINI PCIE TO PCI EXPRESS 16X SLOT ADD ON CARD FOR ITX MOTHERBOARDmini pcie cardMini pcie to dual pci adapter 1Mini pcie to 2 pci slot adapter 1Mini pcie to 2 pci slot converterMini pcie to 2 pci slot card

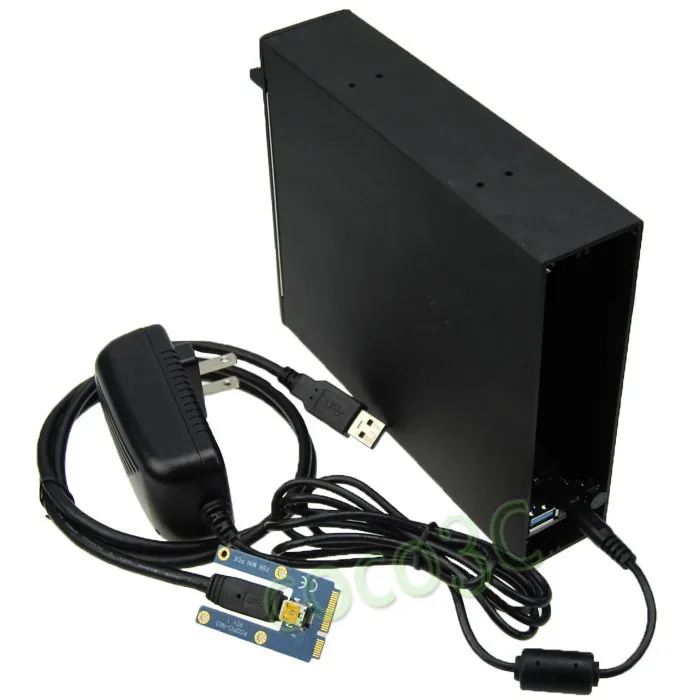

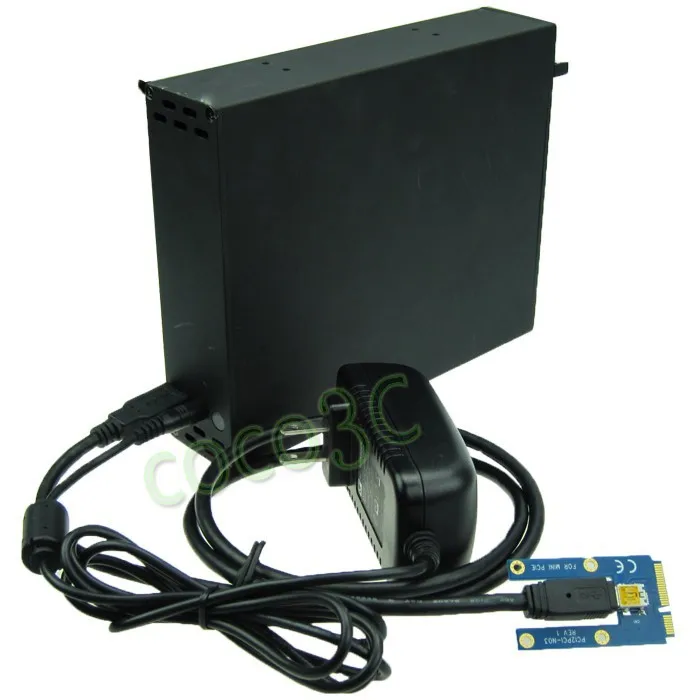

Full set:
Mini pcie to 2 pci slot adapter
pci slot riser card

Packaging Details
  • Unit Type: piece
  • Package Weight: 1.0kg (2.20lb.)
  • Package Size: 15cm x 28cm x 22cm (5.91in x 11.02in x 8.66in)
