Item specifics
  • Package: Yes
  • Computer Connections: 4 Ports
  • Brand Name: WLX
  • Monitor Connections: 4 Ports
  • Model Number: BW-KM04
  • Interface Type: USB
  • Resolution: 1920 x 1440
Product Description

900bingmo2guanggao

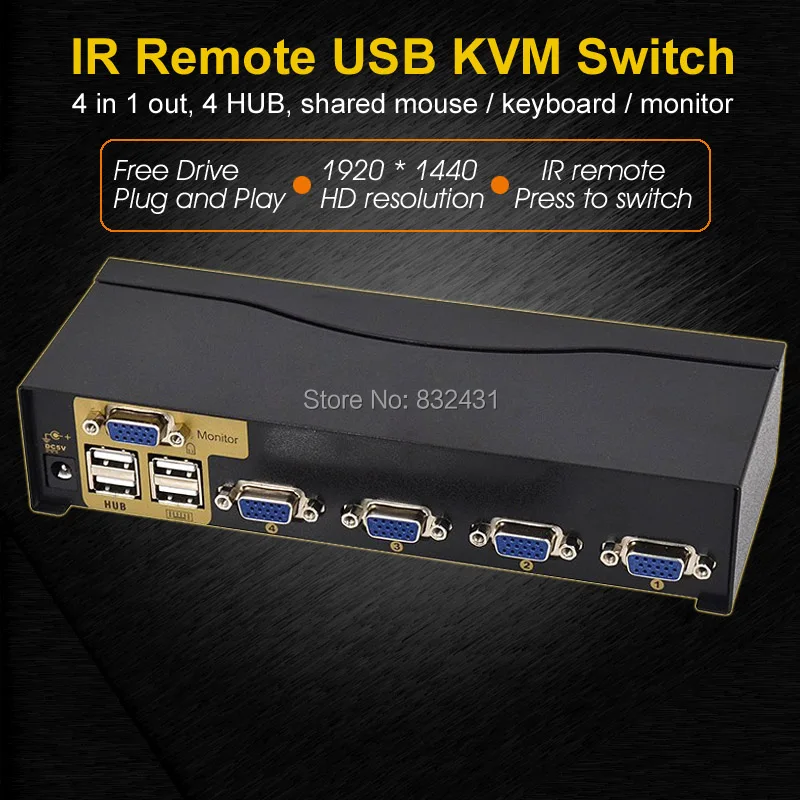

BOWU IR Remote 4 Port USB 2.0 KVM Switch VGA SVGA Switch Adapter Connect Printer Keyboard Mouse 4 Computer Use 1 Monitor

Description:
With this product you can control multi PCs via one set of mouse, keyboard and monitor. Widely used in the office, teaching, entertainment, military information and so on. It will save you time, money, device and energy, improve your working efficiency---a good assistant of your work.

Item specifics:
Name: 4 Port Smart USB KVM Switch
Model Number:BW-KM04
Type:KVM Switch
Application:Commercial/Teaching environment/Financial banking/control center/Telecommunications systems/Securities center/Server room management...

Product features:
1. Good looking and easy installation
2. Support DOS,WIN3.X, WIN95/98/98SE/2K/ME/XP/NT/WIN7/WIN8.1, for Apple,MAC Linux, Netware, Unix operating system and so on.
3. VGA bandwidth: 500MHz
4. Resolution: 1920X1440
5. Support VGA Input: 4 Max
6. Support USB: Mouse/Keyboard/Printer/USB storage...
7. Support PC auto scanning, time interval can be set by the user(support by rack mounted type)

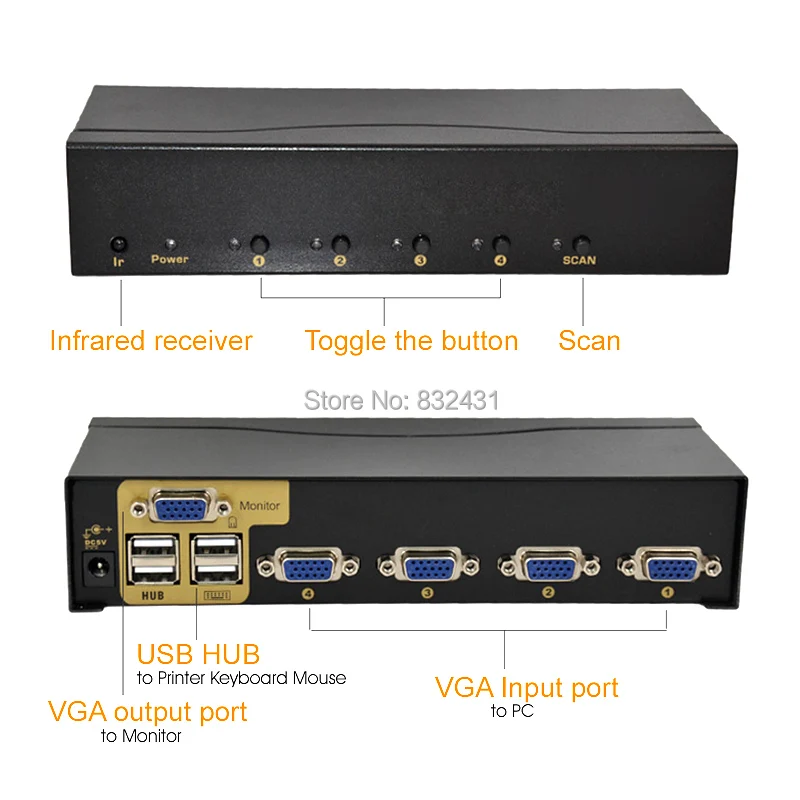

8. Support multi switch mode: A. Buttons on the panel. B. Buttons on the Ir remote controller.

Steps for usage:
1. Connect the host and the KVM switch, connect the USB with VGA end to the host, and connect a single VGA port to the KVM switch.
2. Connect the mouse / keyboard / monitor to the KVM switch.
3. Start the computer in sequence, first start one of the computers (wait for the mouse / keyboard to run), then start another computer, and then start another computer ...

SCAN:
Start scan:
Press the Scan button on the front panel or the Scan button SCAN on the remote control, The scan sequence starts from the first host and then goes back to the first host.
To cancel a scan:
1. Press the numeric keys on the front panel to stop scanning and switch to the corresponding port;
2. Press the number on the remote control to stop scanning immediately and switch to the corresponding port.

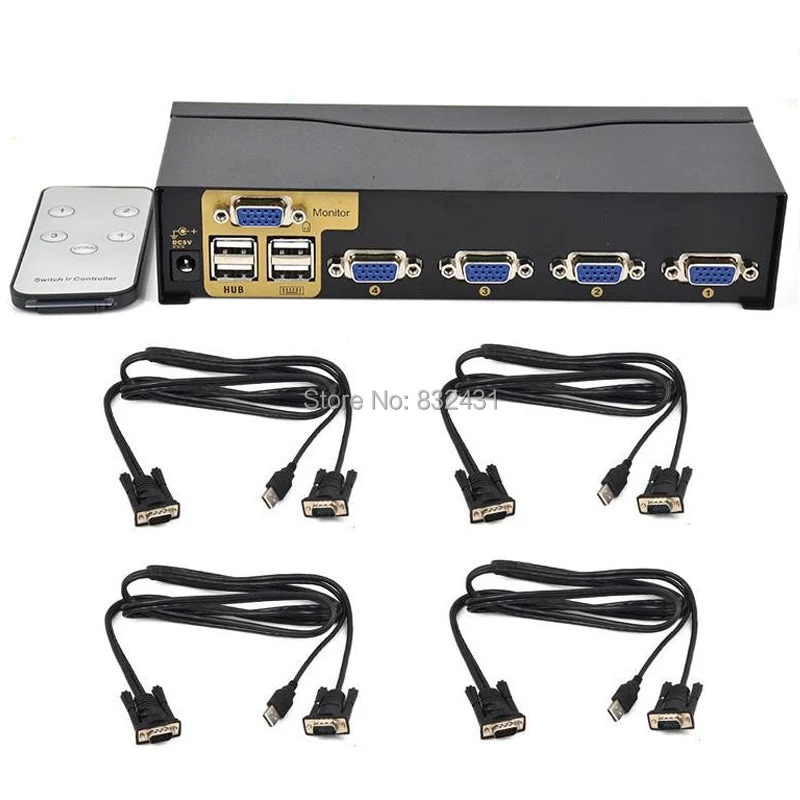

Package included:
1 x VGA switch box
1 x IR remote controller
4 x KVM Cables

NOTE 1: The standard package without power adapter, the power is supplied via the KVM line without additional power.
NOTE 2: Support VGA PC, if PC not VGA port, only HDMI port,need other HDMI to VGA adapter conversion.This product does not contain such adapters.

Frequently Asked Questions:
1. The remote control buttons can not be switched
A: Check the remote control is to remove the insulation film, after a long time to check the remote control battery is exhausted,
Press the number keys on the front panel to switch, first switch to the other port, and then switch back;
Re-plug the keyboard once;
Turn the power switch off and then on again.
2. The mouse and keyboard can not be used
A: wait 1-5 seconds, waiting for the host to identify USB devices;
Press the number button on the front panel to switch, first switch to other ports, and then switch back to the port to operate;
Re-plug the mouse and keyboard once;
Turn the power switch off and then on again.


Package Weight: 0.800kg (1.76lb.)
Package Size: 26cm x 17cm x 7cm (10.24in x 6.69in x 2.76in)

4 Port Smart USB KVM Switch 9 4 Port Smart USB KVM Switch 7 4 Port Smart USB KVM Switch 5 4 Port Smart USB KVM Switch 6 4 Port Smart USB KVM Switch 2 4 Port Smart USB KVM Switch 1 4 Port Smart USB KVM Switch 10 4 Port Smart USB KVM Switch 3
